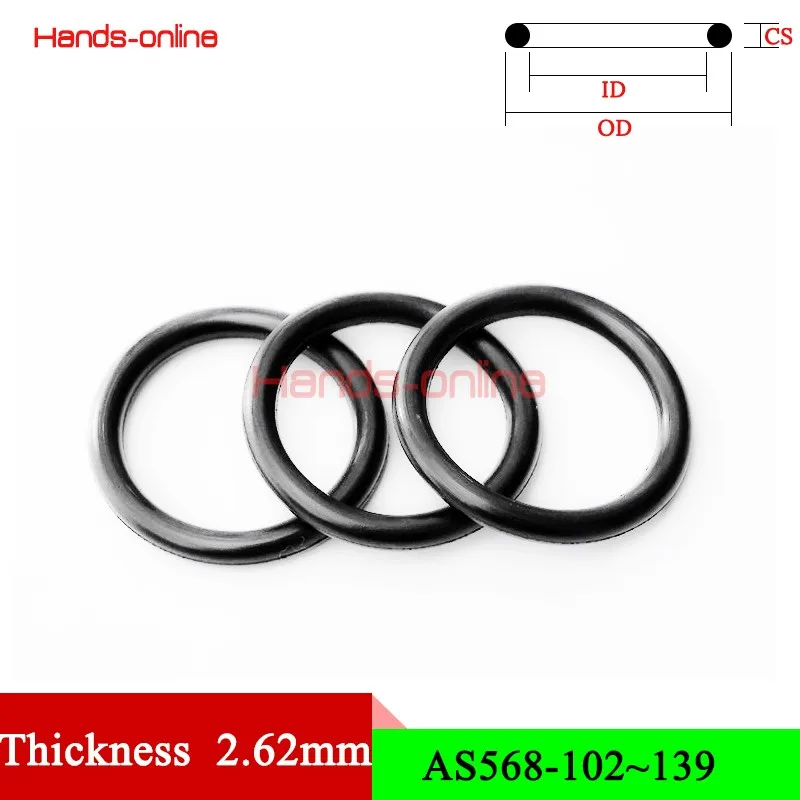

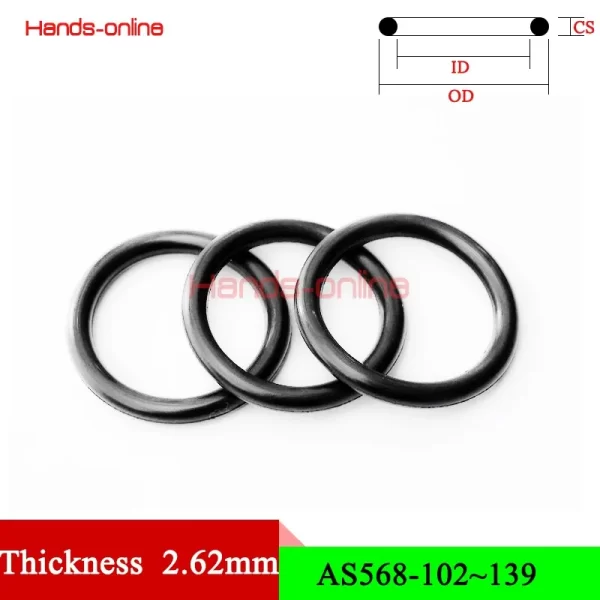

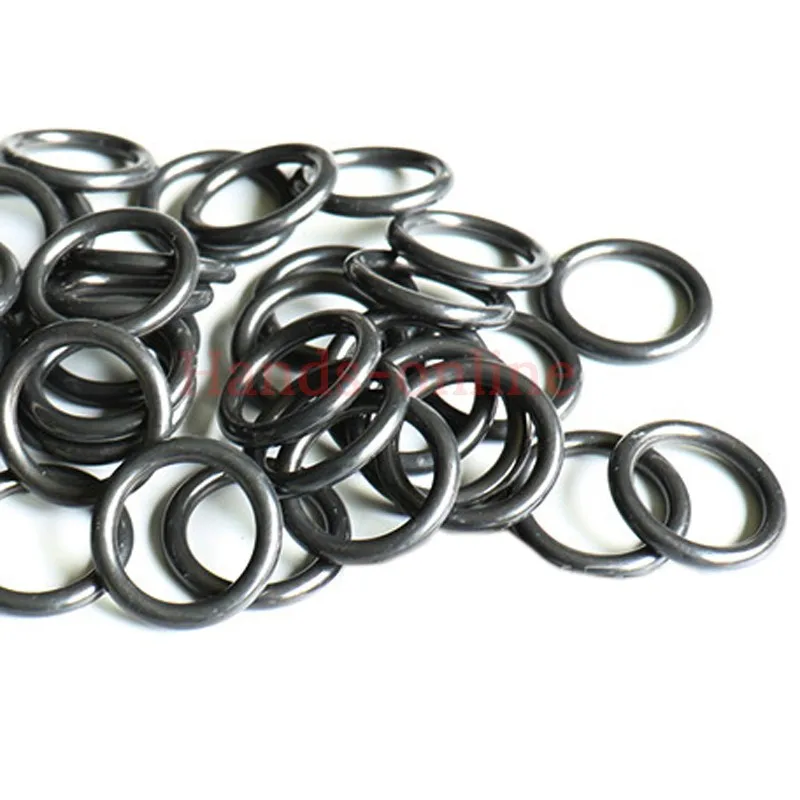

Name: Rubber O Ring Oring gasket Thickness/CS 2.62mm/0.103" NBR Nitrile O-ring seal ID 1.24-55.25mm/0.049-2.175" Mechanical seals
SKU: 3256802538723092
Availability: InStock

Sale!

Rubber O Ring Oring gasket Thickness/CS 2.62mm/0.103" NBR Nitrile O-ring seal ID 1.24-55.25mm/0.049-2.175" Mechanical seals

Rubber O Ring Oring gasket Thickness/CS 2.62mm/0.103" NBR Nitrile O-ring seal ID 1.24-55.25mm/0.049-2.175" Mechanical seals - Image 2

Rubber O Ring Oring gasket Thickness/CS 2.62mm/0.103" NBR Nitrile O-ring seal ID 1.24-55.25mm/0.049-2.175" Mechanical seals - Image 3

Rubber O Ring Oring gasket Thickness/CS 2.62mm/0.103" NBR Nitrile O-ring seal ID 1.24-55.25mm/0.049-2.175" Mechanical seals - Image 4

Rubber O Ring Oring gasket Thickness/CS 2.62mm/0.103" NBR Nitrile O-ring seal ID 1.24-55.25mm/0.049-2.175" Mechanical seals - Image 5

Rubber O Ring Oring gasket Thickness/CS 2.62mm/0.103" NBR Nitrile O-ring seal ID 1.24-55.25mm/0.049-2.175" Mechanical seals - Image 6

$3.37 – $4.75

Inner Diameter

ID 1.24mm AS568-102

ID 10.2mm

ID 10.77mm AS568-111

ID 10.82mm

ID 11.35mm

ID 11.7mm

ID 11.91mm

ID 12.37mm AS568-112

ID 13.1mm

ID 13.94mm AS568-113

ID 14.7mm

ID 15.08mm

ID 15.54mm AS568-114

ID 16.2mm

ID 17.12mm AS568-115

ID 17.86mm

ID 18.58mm

ID 18.5mm

ID 18.72mm AS568-116

ID 2.06mm AS568-103

ID 2.5mm

ID 2.84mm AS568-104

ID 20.29mm AS568-117

ID 20.63mm

ID 21.89mm AS568-118

ID 22.23mm

ID 22.5mm

ID 23.47mm AS568-119

ID 24.5mm

ID 25.07mm AS568-120

ID 25.8mm

ID 26.64mm AS568-121

ID 27.69mm

ID 28.24mm AS568-122

ID 29.82mm AS568-123

ID 3.63mm AS568-105

ID 30.29mm

ID 31.42mm AS568-124

ID 32.99mm AS568-125

ID 33.5mm

ID 34.59mm AS568-126

ID 36.17mm AS568-127

ID 36.7mm

ID 37.77mm AS568-128

ID 39.34mm AS568-129

ID 4.42mm AS568-106

ID 40.7mm

ID 40.94mm AS568-130

ID 42.52mm AS568-131

ID 44.12mm AS568-132

ID 45.69mm AS568-133

ID 47.29mm AS568-134

ID 48.9mm AS568-135

ID 5.23mm AS568-107

ID 50.47mm AS568-136

ID 52.07mm AS568-137

ID 53.64mm AS568-138

ID 54mm

ID 55.25mm AS568-139

ID 6.02mm AS568-108

ID 6.8mm

ID 7.59mm AS568-109

ID 9.19mm AS568-110

ID 9.92mm

Clear

SKU: 3256802538723092

Description

Standard or Nonstandard: Standard
Shape: Ring Gasket
Model Number: 2.62mm AS568
Material: RUBBER
Brand Name: Hands-online
Certification: RoHS
Origin: Mainland China

[xlmodel]-[custom]-[]

Production Information

NBR Oring Mechanical Seal Rubber Ring Gaskets O-ring Kit O rings nitrile Rubber Gasket Ring seal Washer Seals Mechanical Oil Seal Rubber Ring Gaskets Grommet Ring Seals Ring O Ring caucho guarnizione rubber ring gaskets

About us

We are professional manufacturer

The products are sold domestically and around the world

We could offer:

1. Professional Drop Shipping

2. Ready-made & Custom-made

3. Bulk Price

4. Invoice and Certifications

5. Standard shipping or Express

6. Paypal Payment

Rubber O Ring Oring gasket Thickness/CS 2.62mm/0.103″ NBR Nitrile O-ring seal ID 1.24-55.25mm/0.049-2.175″ Mechanical seals

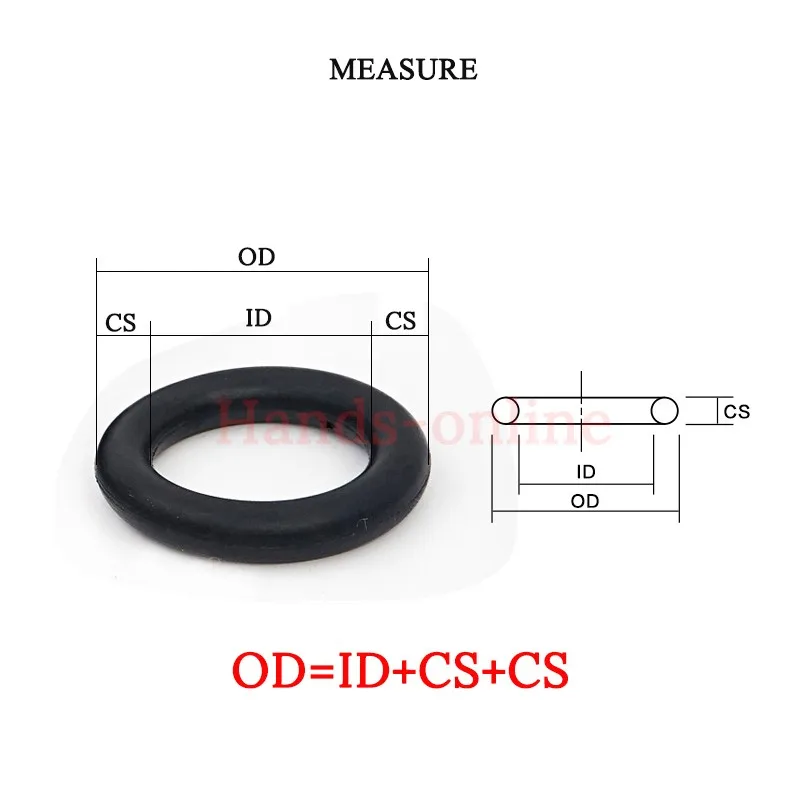

Inner Diameter		Outer Diameter
ID(mm)	ID(inch)	OD(mm)	OD(inch)
1.24	0.049	6.48	0.255
2.06	0.081	7.3	0.287
2.5	0.098	7.74	0.305
2.84	0.112	8.08	0.318
3.63	0.143	8.87	0.349
4.42	0.174	9.66	0.380
5.23	0.206	10.47	0.412
6.02	0.237	11.26	0.443
6.8	0.268	12.04	0.474
7.59	0.299	12.83	0.505
9.19	0.362	14.43	0.568
9.92	0.391	15.16	0.597
10.2	0.402	15.44	0.608
10.77	0.424	16.01	0.630
10.82	0.426	16.06	0.632
11.35	0.447	16.59	0.653
11.7	0.461	16.94	0.667
11.91	0.469	17.15	0.675
12.37	0.487	17.61	0.693
13.1	0.516	18.34	0.722
13.94	0.549	19.18	0.755
14.7	0.579	19.94	0.785
15.08	0.594	20.32	0.800
15.54	0.612	20.78	0.818
16.2	0.638	21.44	0.844
17.12	0.674	22.36	0.880
17.86	0.703	23.1	0.909
18.5	0.728	23.74	0.935
18.58	0.731	23.82	0.938
18.72	0.737	23.96	0.943
20.29	0.799	25.53	1.005
20.63	0.812	25.87	1.019
21.89	0.862	27.13	1.068
22.23	0.875	27.47	1.081
22.5	0.886	27.74	1.092
23.47	0.924	28.71	1.130
24.5	0.965	29.74	1.171
25.07	0.987	30.31	1.193
25.8	1.016	31.04	1.222
26.64	1.049	31.88	1.255
27.69	1.090	32.93	1.296
28.24	1.112	33.48	1.318
29.82	1.174	35.06	1.380
30.29	1.193	35.53	1.399
31.42	1.237	36.66	1.443
32.99	1.299	38.23	1.505
33.5	1.319	38.74	1.525
34.59	1.362	39.83	1.568
36.17	1.424	41.41	1.630
36.7	1.445	41.94	1.651
37.77	1.487	43.01	1.693
39.34	1.549	44.58	1.755
40.7	1.602	45.94	1.809
40.94	1.612	46.18	1.818
42.52	1.674	47.76	1.880
44.12	1.737	49.36	1.943
45.69	1.799	50.93	2.005
47.29	1.862	52.53	2.068
48.9	1.925	54.14	2.131
50.47	1.987	55.71	2.193
52.07	2.050	57.31	2.256
53.64	2.112	58.88	2.318
54	2.126	59.24	2.332
55.25	2.175	60.49	2.381
